| Size range | From 2.4 inch to 55 inch |
|---|---|
| Touch Point | Max 10 Points |
| Input Method | Finger, Glove, Stylus |
| Cover Glass Thickness | Max 15 mm |
| Surface Hardness | 3H to 7H |
| Surface Coating | AG、AR、AS、AF |
Capacitive Touchscreen
SKY-TDM's Capacitive Touch Screen (PCAP) provides interactive solutions for a variety of industries and applications. Our touch screens are widely used in industrial, medical, and rail transit markets. With decades of experience in a variety of niches, we have a wealth of product experience when it comes to building challenging applications.
SKY-TDM's capacitive touch screen technology is well established and supports a variety of new interfaces, such as I²C, USB, SPI, for easy integration with a variety of host devices. The high-strength tempered glass makes the product have high durability in complex environments, and at the same time, it is necessary to ensure that the product works normally in a strong electromagnetic environment, and the touch sensitivity remains unchanged.

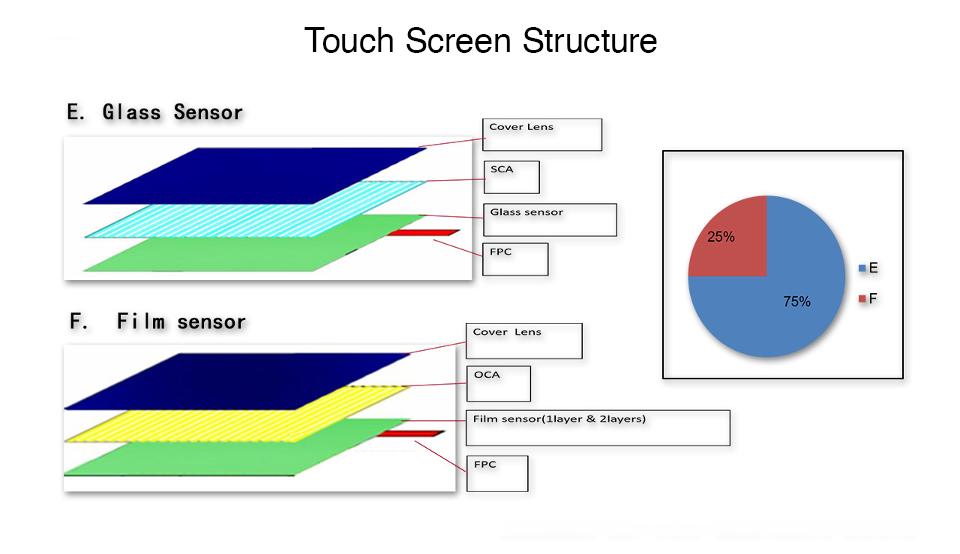

SKY- TDM’s TP structure, based on Glass+Glass and Glass+Film+Film, can meet all the needs of industrial products.
Outstanding touch performance adds greater value to your product.
Fingers touch Automatic identification of all kinds of fingers Support as many as 10 point real touch |

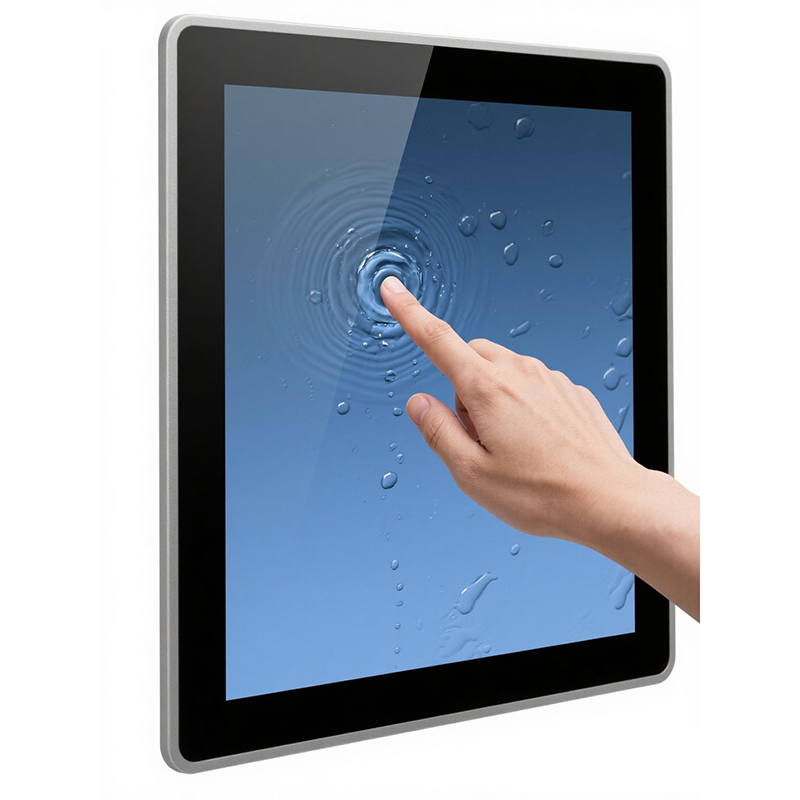

| Pool of water touch Pool of water touch available; Multi-touch with water foggy; Salty water touch available; Ultrasound Transmission Gel touch available. |
|

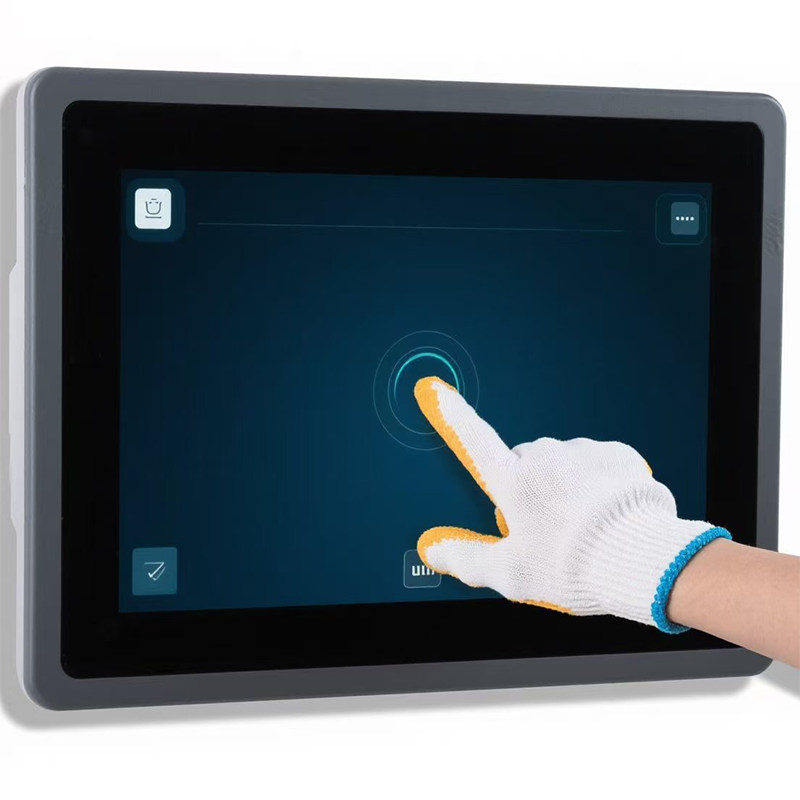

| Gloves touch Max 5mm gloves touch; Different glove materials, leather, cotton, latex, etc; water + gloves + pen stylus is also possible. |

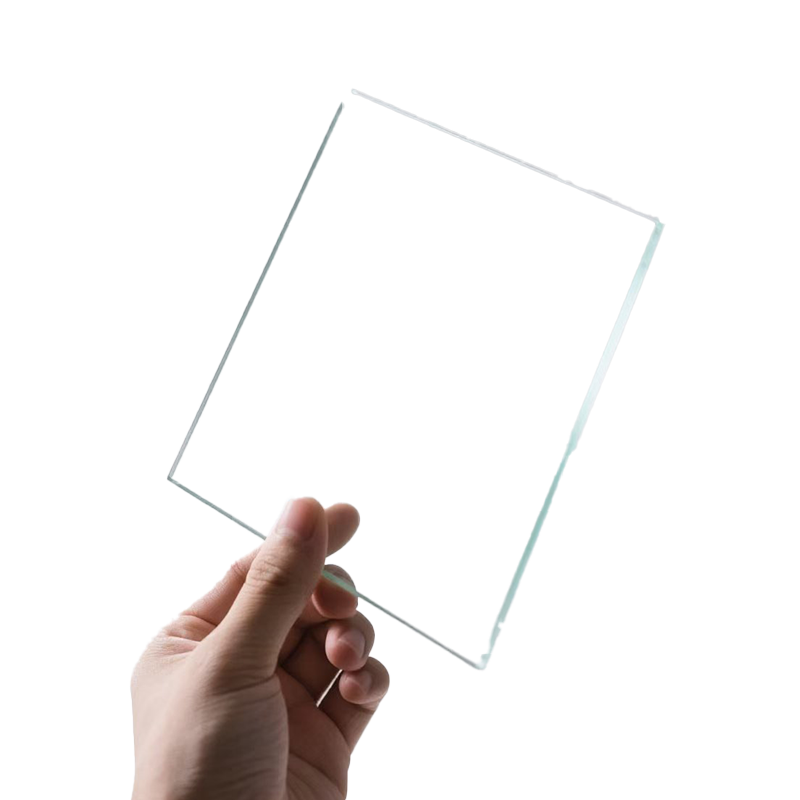

| Cover glass Support max to 15mm cover glass, 5mm PMMA and support touch with (save after-sales cost) |
SKY-TDM accepts your customized needs, starting from the initial R&D and design, until the test meets the requirements and mass production and shipment, and provides technical support and services at all stages, shortening the product time to market, saving you time and money.
